Diesel Land Speed Racer Mk2 - Part 4 - Wheels, Wires, and Welding

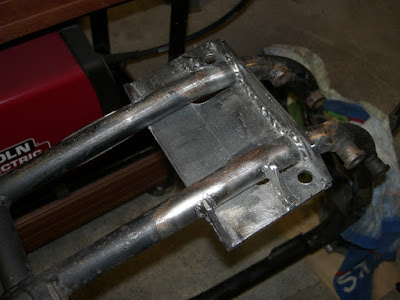

The next step of the project was to fabricate and install the front engine mounting plate. This required a bit of headscratching, because it was necessary to carve a clearance into the engine block, in order to avoid modifying the front frame bend. As a result, the frame had to pass THROUGH the mounting plate.

I accomplished this by machining a pair of slots into the plate that allowed the tubes to pass through. Next, I welded a brace underneath the tubes that joined and strengthened the three edges of the plate.


Shaping the front mount brace

Adding reinforcement braces

Fully Welded

After the frame was finished, I replaced the wheel bearings with a set of homemade tools. I took the opportunity to upgrade from the old two-piece tapered bearings to single-piece ball bearings.

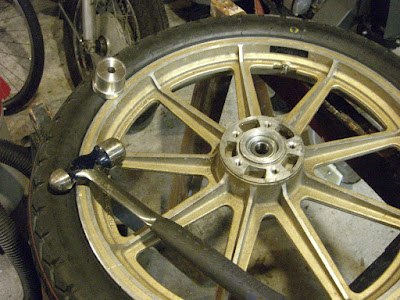

New bearings and a custom-made installation tool
Removing the old bearing race

Knocking in the new bearings

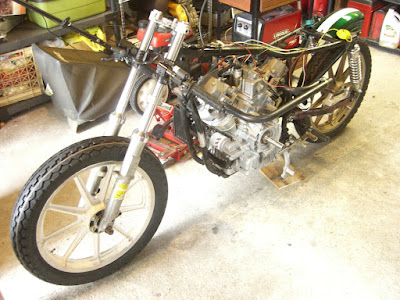

Motor bolted in place

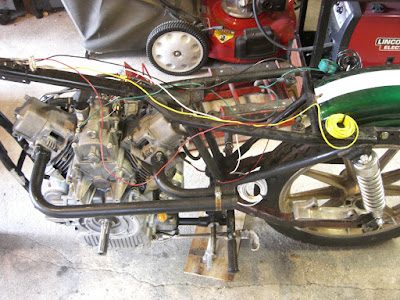

Beginning the wiring harness
